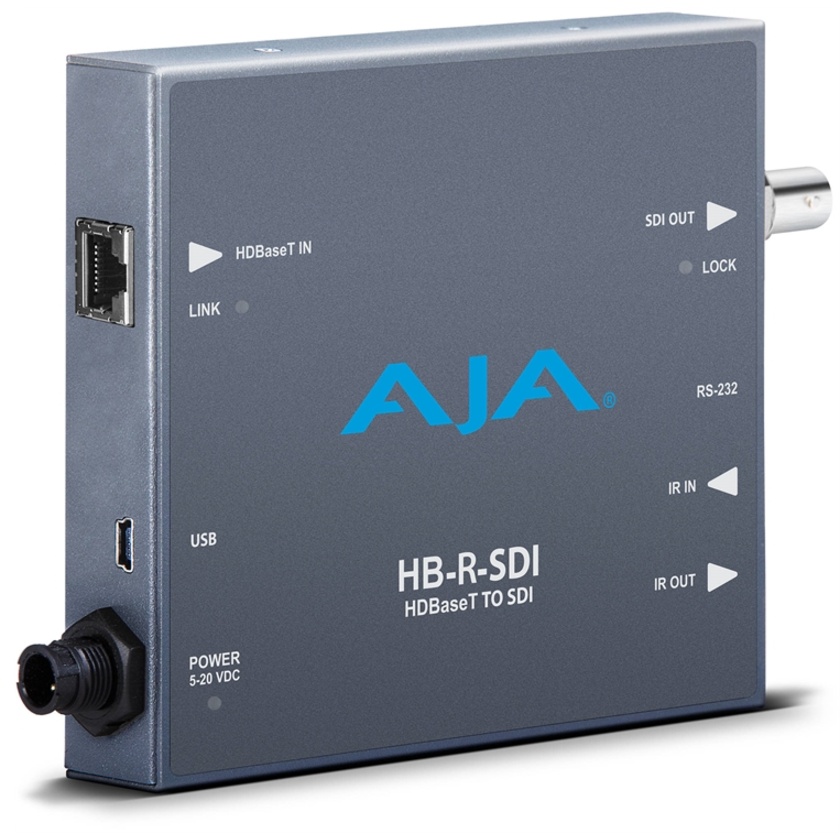

AJA HB-R-SDI HDBaseT to SDI Mini-Converter (Receiver)
Compact HDBaseT-to-3G-SDI receiver, carrying SDI up to 100m over standard network cabling. Requires an HB-T-SDI transmitter at the source.
2 in stock
The HB-R-SDI is a compact HDBaseT receiver that turns a standard Cat 5e/6/6a/7 network run into an extended 3G-SDI video path — up to 100 metres, well beyond what SDI cable alone can reliably carry. Paired with an HB-T-SDI transmitter at the source end, it lets an SDI signal ride over ordinary structured cabling instead of heavy coax runs.
Alongside video, it carries 8 channels of embedded SDI audio (selectable from 16), plus bidirectional RS-232 and IR over the same HDBaseT link, so a single cable run can also carry device control back to the source. It handles everything from SD up through 4K/UltraHD at up to 30fps, with configuration done via USB and AJA's Mini-Config software.
Compact and low-power (9W max), it's a straightforward way to get SDI to a projector, display or recorder that's too far from the source for a direct cable run — common in fixed installs, digital signage, and studio environments.
| Input | 1x HDBaseT (RJ-45) |
|---|---|
| Output | 1x 3G-SDI (BNC) |
| Video formats | SD (525i/625i) through HD/2K and 4K/UltraHD (3840x2160, 4096x2160, 8-bit 4:2:0, >30fps) |
| Audio | 8 channels (4 pairs) embedded SDI audio, selectable from 16 channels |
| Control | RS-232 and IR in/out via 3.5mm TRS, configuration via USB + AJA Mini-Config software |
| Cable run | Up to 100m over Cat 5e/6/6a/7, depending on format |
| Power | +5 to 20V DC, 9W max (AJA DWP-U-R1 supply, 100-240V 50/60Hz) |
| Dimensions | 101.6 x 116.8 x 25.4mm (4.0 x 4.6 x 1.0in) |
| Weight | 0.3kg (0.6lb) |
| Operating temp | 0-40°C |
| Note | Receiver only — requires a matching HB-T-SDI transmitter at the source end |
