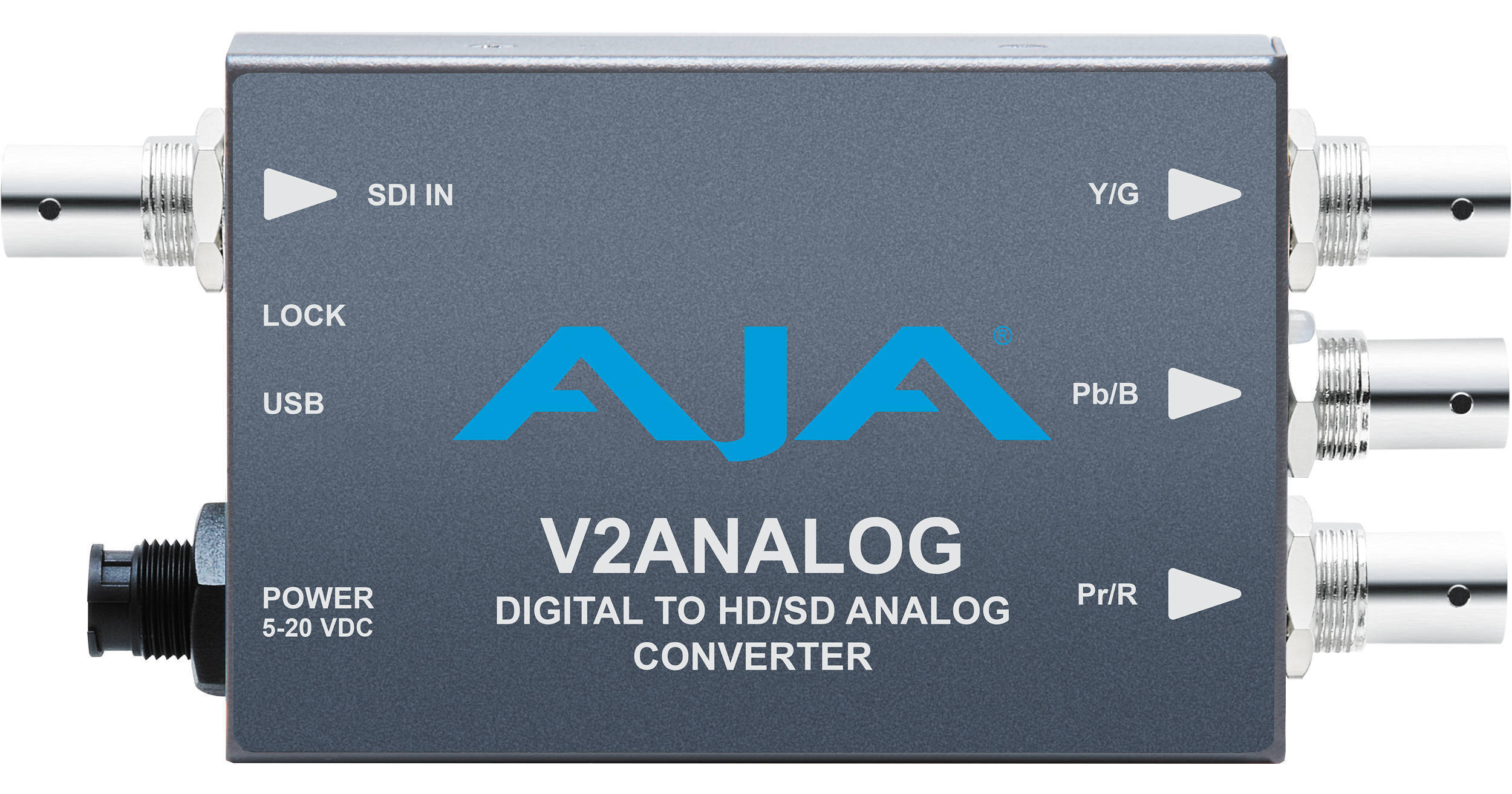

AJA V2Analog HD/SD-SDI to Analog Mini-Converter
HD/SD-SDI to analog mini-converter with a full 10-bit path, delivering component (YPbPr/RGB) or composite/S-Video outputs. Open box unit, full warranty.
5-Year Warranty
1 in stock
The V2Analog is AJA's high-quality, cost-effective SDI-to-analog mini-converter, built for bridging monitors, tape decks and other analog gear into an otherwise all-digital workflow. It takes a single HD/SD-SDI input and converts it, at a full 10-bit data path, to component video (YPbPr, Betacam, RGB) or composite/S-Video outputs — SD or HD, without up/down-converting between the two.
Source and output format are set via an external DIP switch, covering local/remote control, component/composite switching, YPbPr/RGB selection and SD pedestal — no host software required, so it drops straight into a rack or a bag.
This unit is sold as open box: a genuine, unused AJA V2Analog with its original packaging opened, at a reduced price versus a sealed unit, and covered by AJA's full 5-year warranty like any other new unit.
| Input | 1x HD/SD-SDI (SMPTE-259/292/296M, BNC) |
|---|---|
| Outputs | HD component YPbPr or RGB (SMPTE-274, BNC); SD component (Betacam, EBU-N10), composite, or YC (S-Video), BNC |
| Video formats | HD: 1080i (50/59.94/60), 1080p (23.98/24/25/29.97/30), 1080PsF (23.98/24/25), 720p (50/59.94/60). SD: 625i, 525i |
| Conversion path | Full 10-bit; digital-to-analog only, no SD/HD up/down-conversion |
| Controls | External DIP switch: local/remote, component/composite (SD), YPbPr/RGB format, pedestal present (SD) |
| Dimensions | 129.54 x 60.96 x 25.4mm (5.1 x 2.4 x 1.0in) |
| Power | +5 to 20V DC, 3W |
| Operating temp | 0-40°C |
| Condition | Open box — unused, original packaging opened, full 5-year AJA warranty |
