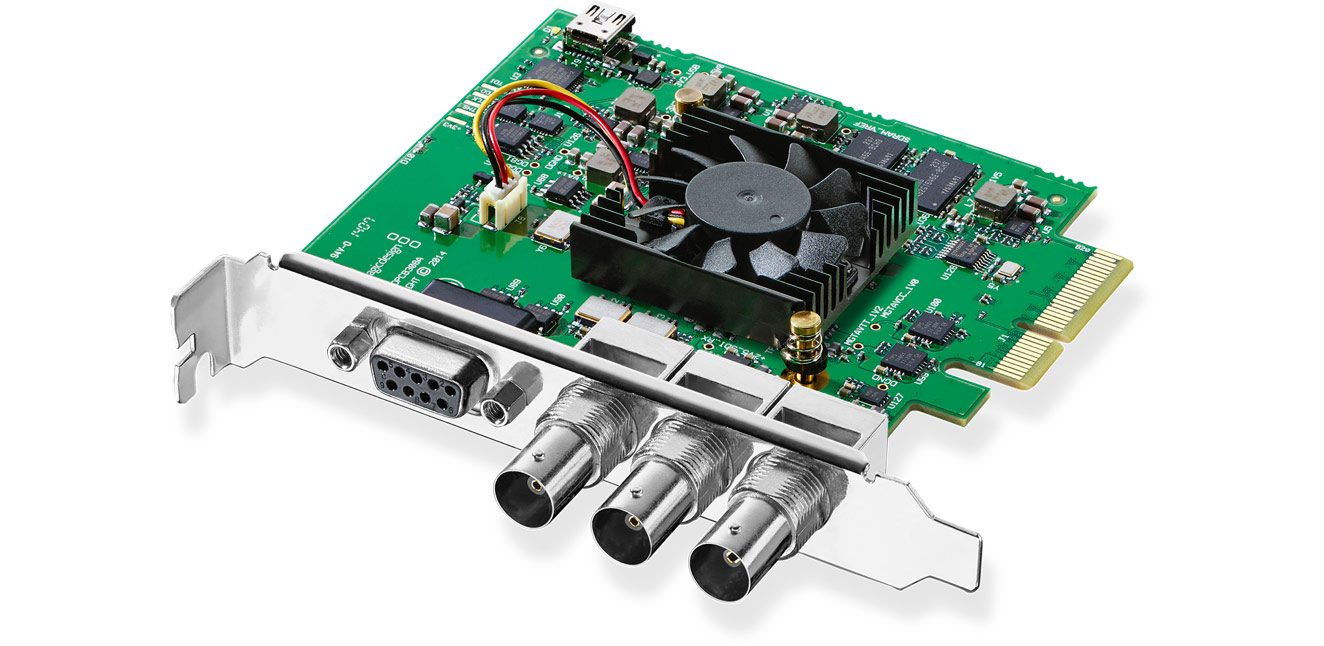

Blackmagic DeckLink SDI 4K
Compact SDI-only capture and playback card covering SD through 4K DCI on a single 6G-SDI connection.
1 in stock
DeckLink SDI 4K is a compact, SDI-only capture and playback card covering everything from SD up to 4K DCI on a single 6G-SDI connection, with automatic format detection so it adapts to whatever the source is sending. It's a practical fit for edit and playout systems that only need a single high-quality SDI I/O rather than the multi-channel capacity of DeckLink's larger cards.
The card handles 10-bit SD/HD/2K/4K at up to 6Gb/s in 4:2:2 or 3Gb/s in 4:4:4, carries 16 channels of embedded SDI audio (8 on SD), and includes RS-422 deck control plus Tri-Sync/Black Burst reference input for house sync. Built-in real-time colorspace conversion and HD down/up/cross conversion mean mixed-format sources can be normalized on the card itself.
It installs into a PCIe 4-lane Gen2 slot (compatible with 4, 8 and 16-lane slots) and draws just 11W, making it a low-footprint way to add a single reliable SDI channel to a workstation.
| Connections | 1x bi-directional 10-bit SDI, SD/HD/2K/4K (6Gb/s 4:2:2, 3Gb/s 4:4:4) |
|---|---|
| Video formats | SD (525i59.94, 625i50); HD up to 1080p60; 2K DCI 23.98-25p; Ultra HD 2160p 23.98-30p; 4K DCI 23.98-25p |
| SDI audio | 16 channels (HD/2K/4K); 8 channels (SD) |
| Sync | Tri-Sync or Black Burst reference input |
| Control | 1x RS-422 deck control |
| Processing | Real-time colorspace conversion; HD down/up conversion; cross conversion |
| Host interface | PCI Express 4-lane Gen2 (4, 8 and 16-lane slot compatible) |
| Power consumption | 11W |
| OS support | macOS, Windows 10/11, Linux |
| Warranty | 3 years (manufacturer) |
